OBD2 Scanner TPS sensor below 30% at engine ideal

[U-tag]

මචං මාගෙ Alto K10 එකේ TPS percentage එක 25% level එකේ තියෙන්නේ RPM 1,400-1700 වගේ තියද්දී (ideal).

මෙක normal ද? මම දැක්කා 50% වගේ තියෙන කතාවක්.

Update!
RPM corrected.



[Axi]

K10 enne Dynamic Synchromax nisa okay



[U-tag]

K10 enne Dynamic Synchromax nisa okay

එහෙමද බං.



[dayt0na]

bump



[pavithra_uk]

idle 2000 rpm wadi ne ban
normally 600 wage thiyenna ona
hichchi engine nisa 800 wath athi



[U-tag]

idle 2000 rpm wadi ne ban
normally 600 wage thiyenna ona
hichchi engine nisa 800 wath athi

මේක බං Alto K10 VXI - 1,000CC එකක්. 2,000 එන්නේ නම් නැ බං. Ideal නම් එන්නේ 1,400 - 1,700 වගේ.



[Lakshan-Seram]

idle 1400 kiyanne wedi wage.



[U-tag]

idle 1400 kiyanne wedi wage.

මොකද කරන්න ඕනේ බං? 1,000CC එකක්.



[Lakshan-Seram]

මොකද කරන්න ඕනේ බං? 1,000CC එකක්.

Tps awlak wagema vacuum leak ekak wage wennath puluwan. Me normal operating temperature ekata awata passe neda?

odb scanner eken live data balanna STFT ehema.



[hasithayad]

bump



[kinkon]

Alto K10



[U-tag]

Tps awlak wagema vacuum leak ekak wage wennath puluwan. Me normal operating temperature ekata awata passe neda?

odb scanner eken live data balanna STFT ehema.

ඔව් බං. Normal temperature එකේ.

STFT එක -18.8% සිට -14.1% වගේ තිබ්බ.
LTFT එක දිගටම -13.3% වගේ තිබ්බේ.



[Lakshan-Seram]

ඔව් බං. Normal temperature එකේ.

STFT එක -18.8% සිට -14.1% වගේ තිබ්බ.
LTFT එක දිගටම -13.3% වගේ තිබ්බේ.

Running rich. Coolant temperature reading keeyada tiyenne?

---

Mata hitenne temperature eka read karanawa weradi
------ Post added on Jul 3, 2023 at 8:26 AM



[U-tag]

Running rich. Coolant temperature reading keeyada tiyenne?

---

Mata hitenne temperature eka read karanawa weradi
------ Post added on Jul 3, 2023 at 8:26 AM

89°C තිබ්බේ ඔය STFT data ගන්නකොට. 54KM දුවද්දී max coolant temperature එක 91°C තිබ්බේ. App එකේ History එකේ 98°C ගියපු අවස්තා තියනවා.

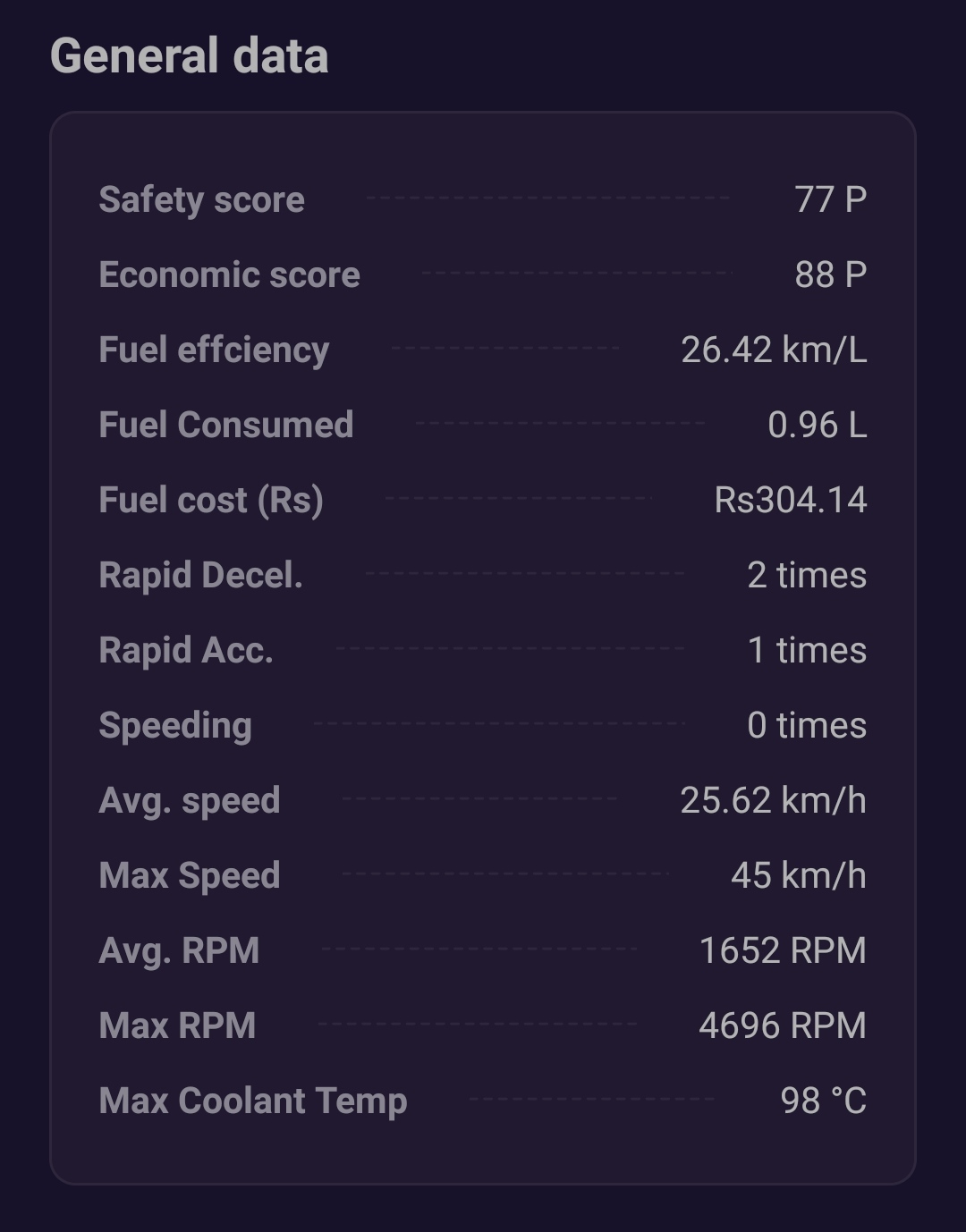

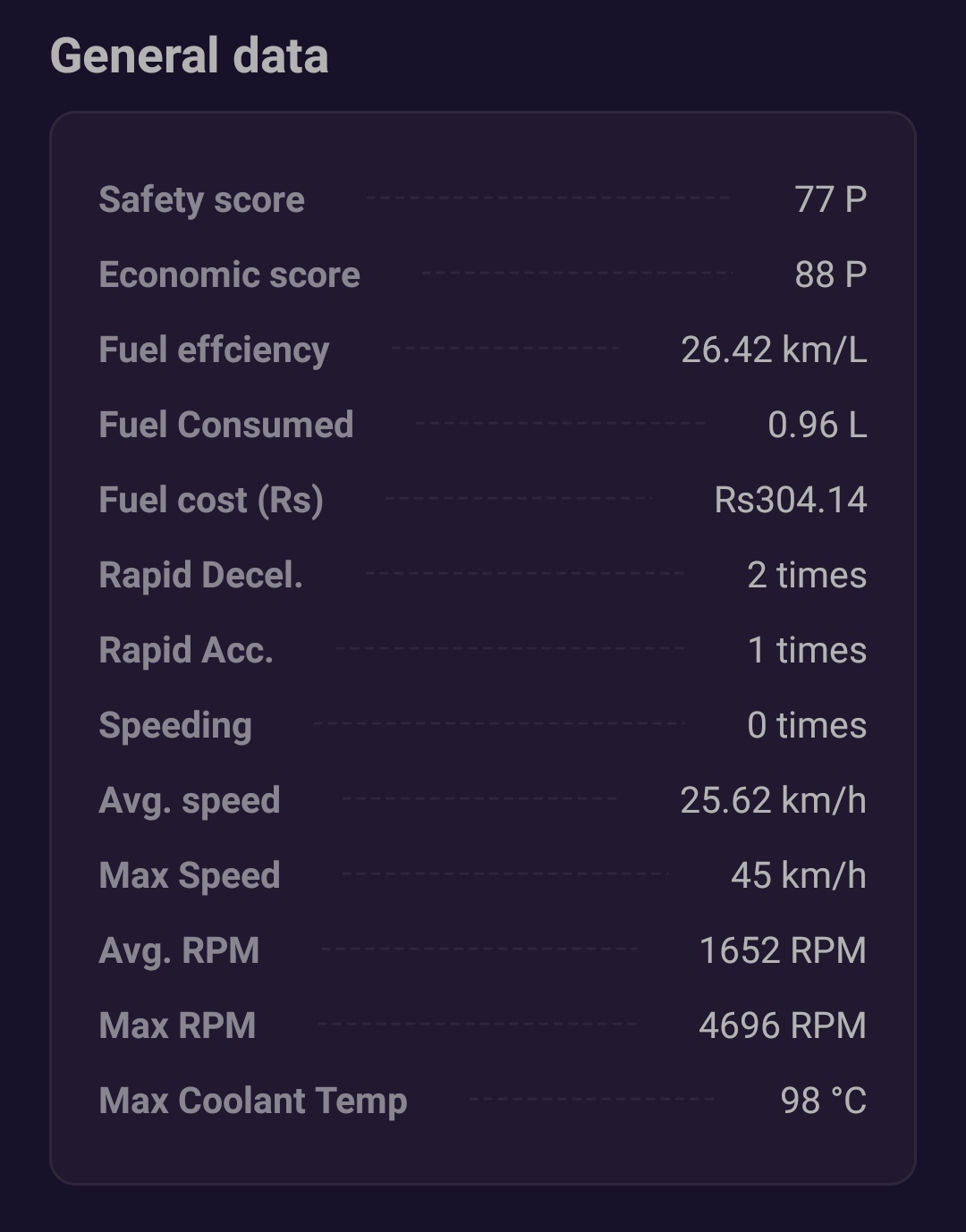

මේ max coolant temperature එක ආපු අවස්ථාව.



[Lakshan-Seram]

89°C තිබ්බේ ඔය STFT data ගන්නකොට. 54KM දුවද්දී max coolant temperature එක 91°C තිබ්බේ. App එකේ History එකේ 98°C ගියපු අවස්තා තියනවා.


මේ max coolant temperature එක ආපු අවස්ථාව.

View attachment 209036

o2 reading tiyenawada graph ekak?

---

mama hariyatama danne na oke MAF tiyenawada kiyala. air cleaner ehema khomada?
------ Post added on Jul 3, 2023 at 10:08 AM



[U-tag]

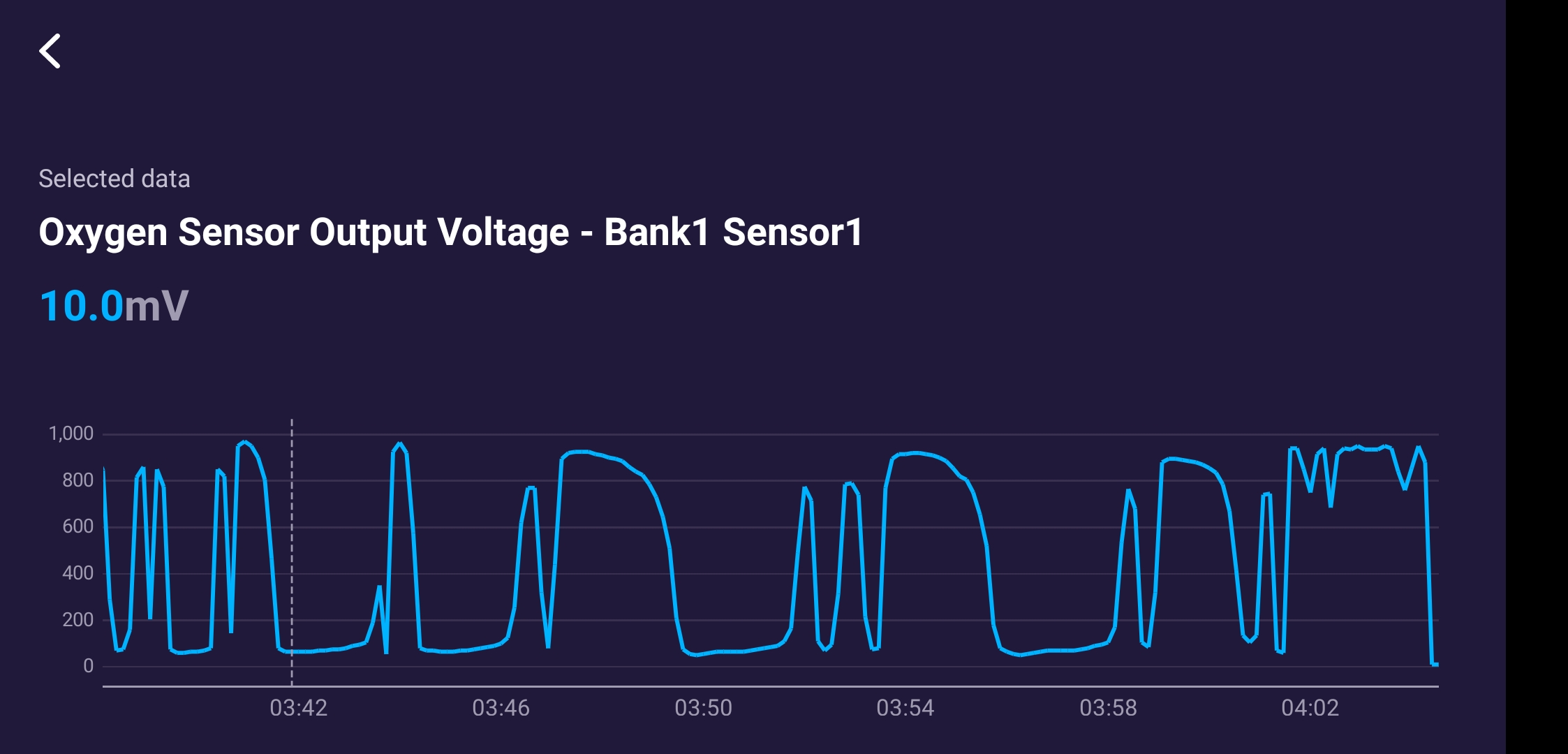

o2 reading tiyenawada graph ekak?

---

mama hariyatama danne na oke MAF tiyenawada kiyala. air cleaner ehema khomada?
------ Post added on Jul 3, 2023 at 10:08 AM

MAF නැ වගේ බං.

O2 reading නම් තියනවා.



[prashadSri]

bump



[speedmalli]

Why O2 sensor going up and down ? fuel burn wenne nathi seen ekakda ? Maybe one of then cylinders not burning correctly. Check ignition and plugs.

Negative Fuel trim means cutting fuel at injectors , could be an air leak ? O2 sensor maybe dirty ?

If it idles at high rpm means throttle is compensating for something. Maybe at 600-800 knock sensors detecting something? Again leads to at least one cylinder not burning correctly?

does the engine vibrate ?



[Lakshan-Seram]

Why O2 sensor going up and down ? fuel burn wenne nathi seen ekakda ? Maybe one of then cylinders not burning correctly. Check ignition and plugs.

Negative Fuel trim means cutting fuel at injectors , could be an air leak ? O2 sensor maybe dirty ?

If it idles at high rpm means throttle is compensating for something. Maybe at 600-800 knock sensors detecting something? Again leads to at least one cylinder not burning correctly?

does the engine vibrate ?

Upstream O2 sensor voltage should be going 0.1v to 0.9v as the graph. But, in this case one cylinder seems running rich.

if there’s an air leak, it should run lean. Means ECU will add more fuel



[saw1993]

මචං මාගෙ Alto K10 එකේ TPS percentage එක 25% level එකේ තියෙන්නේ RPM 1,400-1700 වගේ තියද්දී (ideal).

මෙක normal ද? මම දැක්කා 50% වගේ තියෙන කතාවක්.

Update!
RPM corrected.

Mage k10 eke idle 1000 rpm. Rough idle ekak da thynne ?
