Arduino බෝඩ් එකක් හදාගන්න උදව්?

[Draco Malfoy]

Ali eken dapu arduino uno clone board ekak 4 months walata withara passe awa (thanks BW)
awula mekai, usb cable connect kalata board eka detect wenne na "device manager" eke.

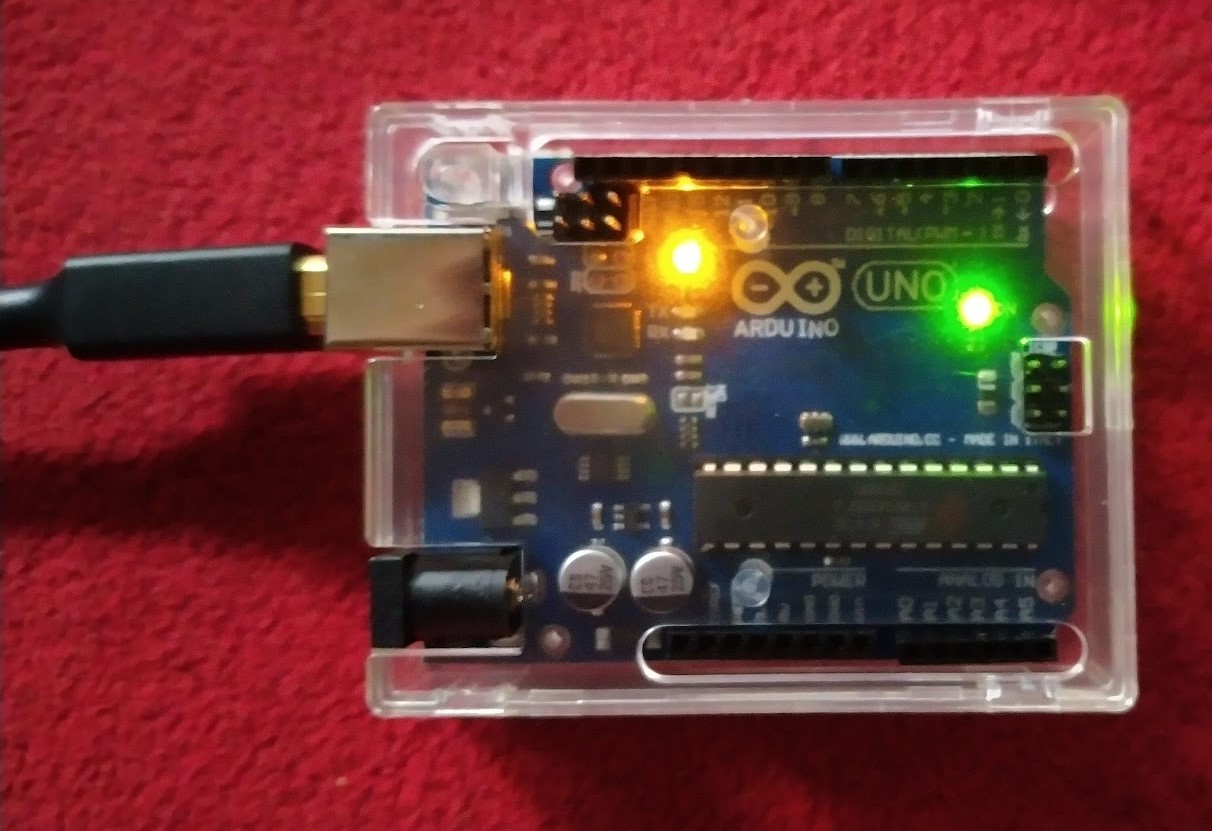

usb power dunnama, On "Green Light" eka digatama thiyenawa & L "orange light" eka blink wewi thiyenawa.

usb to serial converter ekata thiyenne ATmega16U2 chip ekak, ekanisa special drivers danna one na kiyanawa, (CH340 thiyena clone boards ekak neme).

any help or suggestion guys? mage laga thawa arduino ekak na bootloader burn karannath.



[Sonique]

Windows nan electronically unsigned devices allow karanna oni. Google it



[topiyaa]

blink code eka upload karala enne. ekai blink wenne light eka. ch340 drivers dala baluwe nadda



[Draco Malfoy]

Windows nan electronically unsigned devices allow karanna oni. Google it

uba kiwwata passe karala baluwa machan (shift+restart eken set karana method eka) but harigiye na. thama detect wenne na.

---

blink code eka upload karala enne. ekai blink wenne light eka. ch340 drivers dala baluwe nadda

ch340 damma machan but no difference, arduino ide eka open kalama port ekath freez, aduma lap ekata connect kalama ena alert sound ekawath enne na.
------ Post added on Mar 16, 2022 at 10:00 PM



[Aki992]

Google karala baluwada bn .. divers awlk atte ..



[Draco Malfoy]

Google karala baluwada bn .. divers awlk atte ..

google baluwa bn dawas dekak thisse wage. hari giye na ekakwath. meke thiyenne 16u2 chip eka nisa gahapu gaman detect wenna one device manager eke, eita passe drivers danna puluwan. ch340 ekelu drivers danakam detect wenneth naththe.
mama dekama kala but no change.
google eke thawa dala thibba bootloader eka aluthen dala balanna kiyala, eth ekata thawa board ekak onene.
usb to serail 16u2 chip eka faulty wage, detect wenne na. power eka nam yanawa.



[this_is_doge]

COM ports wenas wenawada kiyala baluwada? Arduino IDE eka open karala balanna wadipura COM port ekak awillada kiyala



[supun2013]

Cable eka check karanna



[Draco Malfoy]

COM ports wenas wenawada kiyala baluwada? Arduino IDE eka open karala balanna wadipura COM port ekak awillada kiyala

na machan, com port enable wennewath na device manager eke , mama "show hidden devices" ekath damma, eth pennanne na.
arduino ide eke port option eka freeze wela thiyenne, eka port ekakwath pennanne na.

Cable eka check karanna

wena wada karanawa sure cable ekakinuth try kala but nothing changed



[Aki992]

google baluwa bn dawas dekak thisse wage. hari giye na ekakwath. meke thiyenne 16u2 chip eka nisa gahapu gaman detect wenna one device manager eke, eita passe drivers danna puluwan. ch340 ekelu drivers danakam detect wenneth naththe.
mama dekama kala but no change.
google eke thawa dala thibba bootloader eka aluthen dala balanna kiyala, eth ekata thawa board ekak onene.
usb to serail 16u2 chip eka faulty wage, detect wenne na. power eka nam yanawa.

ඔව් මටත් හිතෙන්නේ board එකේ අව්ලක් වගේ ... ඔච්චර නටන්න වෙන්නේ නෑ ... මගේ Arduino node mcu board එකක් නම් oma පෙන්නුවේ නෑ...

ඒත් device manager එකේ පහළම unrecognised device වල තිබ්බා .. එකට driver දැම්මා ම හරී ගියා..

හරී com port එක තෙරුවද ? කොයි කටත් ස්ක්‍රිප්ට් එකක් upload කරන්න ට්‍රයි කරලා බලන්න..



[Sonique]

uba kiwwata passe karala baluwa machan (shift+restart eken set karana method eka) but harigiye na. thama detect wenne na.

---

ch340 damma machan but no difference, arduino ide eka open kalama port ekath freez, aduma lap ekata connect kalama ena alert sound ekawath enne na.
------ Post added on Mar 16, 2022 at 10:00 PM

If you did the digitally signed thing install arduino software. Change USB ports



[Draco Malfoy]

ඔව් මටත් හිතෙන්නේ board එකේ අව්ලක් වගේ ... ඔච්චර නටන්න වෙන්නේ නෑ ... මගේ Arduino node mcu board එකක් නම් oma පෙන්නුවේ නෑ...

ඒත් device manager එකේ පහළම unrecognised device වල තිබ්බා .. එකට driver දැම්මා ම හරී ගියා..

හරී com port එක තෙරුවද ? කොයි කටත් ස්ක්‍රිප්ට් එකක් upload කරන්න ට්‍රයි කරලා බලන්න..

com port select karanna enne na machan. com port option eka freeze wela thiyenne.
upload karanna giyama fail wenawa. com port wath select karala nathi nisa.

If you did the digitally signed thing install arduino software. Change USB ports

tried it machan, no difference.



[Sonique]

com port select karanna enne na machan. com port option eka freeze wela thiyenne.
upload karanna giyama fail wenawa. com port wath select karala nathi nisa.

tried it machan, no difference.

Then buy the cheapest arduino you can buy and test again. Dude if you are getting in to the embedded systems world you should be able to figure these things out. It gets very complex real quick once you get things going. Arduino is just a kids toy.



[Draco Malfoy]

Then buy the cheapest arduino you can buy and test again. Dude if you are getting to the embedded systems world you should be able to figure these things out. It gets very complex real quick once you get things going. Arduino is just a kids toy.

thanks for the help machan.
I tried all the stuff I found on google, stackoverflow, arduino forum & etc. I posted here after doing all the things I could find on net. So I think I tried my best to "figure things out" and I just wanted to check is it possible to get this back without buying another arduino. I think 16U2 is faulty in this board.



[Sonique]

thanks for the help machan.
I tried all the stuff I found on google, stackoverflow, arduino forum & etc. I posted here after doing all the things I could find on net. So I think I tried my best to "figure things out" and I just wanted to check is it possible to get this back without buying another arduino. I think 16U2 is faulty.

When that processor is faulty (Not completely burnt) you usually cannot upload sketches anymore via board's inbuilt USB. Still the board will be identified. Try a different USB cable as well. Anyway you should have a spare arduino because 16U2 so fragile. Despite whatever the internet tutorials say never power a servo or anything like that which has a coil, directly from Arduino.



[Draco Malfoy]

When that processor is faulty you usually cannot upload sketches anymore via board's inbuilt USB. Still the board will be identified. Try a different USB cable as well. Anyway you should have a spare arduino because 16U2 so fragile. Despite whatever the internet tutorials say never power a servo or anything like that which has a coil, directly to Arduino.

Got it machan.
just out of curiosity, if the 16U2 is faulty, shouldn't it completely stop working with a pc via usb? shouldn't it even be appeared in device manager as happened to me because As I heard 16U2 is the one who does all the usb to serial conversion, if it fails all usb communications have to fail right?

I may get a new board but thanks to the exchange rates, now even clone board seems to be over 2500, 3000 If I get another one which one you recommend one with 16U2 or CH340 chip?



[Sonique]

Got it machan.
just out of curiosity, if the 16U2 is faulty, shouldn't it completely stop working with a pc via usb? shouldn't it even be appeared in device manager as happened to me because As I heard 16U2 is the one who does all the usb to serial conversion, if it fails all usb communications have to fail right?

I may get a new board but thanks to the exchange rates, now even clone board seems to be over 2500, 3000 If I get another one which one you recommend one with 16U2 or CH340 chip?

You might think that but it's not the case. Failure of 16U2 or CH340 has never made the board unrecognizable for me. Maybe it's because my computer has already recognized it before it failed. Everytime I connect the board it comes up in the device manager. But in your case I have never had a board DOA. So I don't know. But it's usually you cannot communicate via that processor anymore. CH340 is what I prefer because it is very easy to replace them with a soldering iron and a hot air gun. You should have a good UNO as a spare (So you can use Arduino as ISP) and you should do all the testing on a Mini or a Uno copy. Or you should have a seperate programmer. Just buy an arduino Mini with a builtin CH340



[LastFreeSriLankan]

Get a USBTinyISP programmer and reprogram usb to serial firmware to16U2
