machanla puluwannam pic16f84(A) ekata counter asm file ekak hoyala dennako........?



[electris1]

machanla puluwannam pic16f84(A) ekata counter asm file ekak hoyala dennako........?

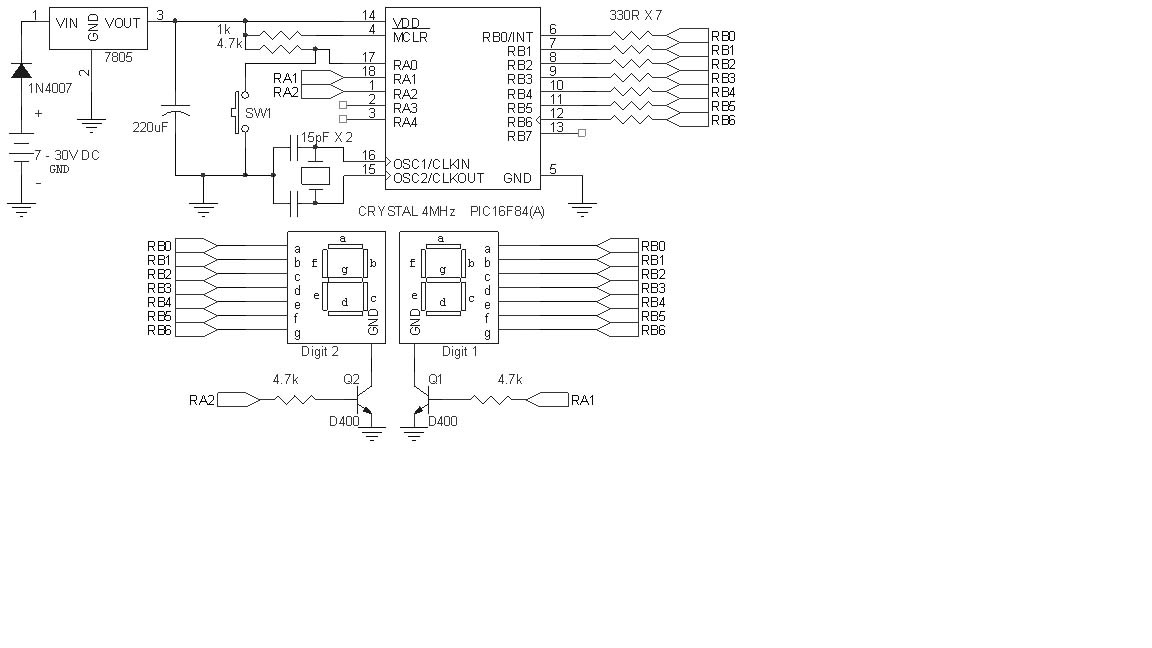

koi wage ekakda?circuit diagram eka tiyenawada oya lage?



[xshax]

;*****Define Registers*****

PC equ 02h
STATUS equ 03h
PORTA equ 05h
PORTB equ 06h
TRISA equ 85h
TRISB equ 86h
CounterL equ 0Dh
CounterH equ 0Eh
Digit1 equ 10h
Digit2 equ 11h

;*****initialization*****

bsf STATUS,5 ;Switch to Bank 1
movlw b’00111001'
movwf TRISA ;RA0 I/P RA1,2 O/P
clrf TRISB ;PORT B output
bcf STATUS,5 ;Switch to Bank 0
clrf Digit1 ;initilize to zero
clrf Digit2 ;initilize to zero
;**display the first digit**
Loop bcf PORTA,2 ;disable digit2
movf Digit1,0 ;get digit1 value
call Table ;Look Up Table
movwf PORTB ;Writ the number
bsf PORTA,1 ;enable digit1

;**small delay to display digit1**

Delay1 decfsz CounterL,1
goto Delay1

;**display the second digit**

bcf PORTA,1 ;disable digit1
movf Digit2,0 ;get digit2 value
call Table ;Look Up Table
movwf PORTB ;Writ the number
bsf PORTA,2 ;enable digit2

;**small delay to display digit2**

Delay2 decfsz CounterL,1
goto Delay2
btfss PORTA,0 ;Button pressed?
goto Countup ;If yes Count up
goto Loop ;else back to Loop

;**Update Digit1 and Digit2**

Countup incf Digit1,1 ;increase Digit1
movlw D’10' ;load w with ten
xorwf Digit1,0 ;compare with 10
btfss STATUS,2 ;if equal result 0
goto Loop ;else back to Loop
clrf Digit1 ;make Digit1 = 0
incf Digit2,1 ;increase Digit1
movlw D’10' ;load w with ten
xorwf Digit2,0 ;compare with 10
btfsc STATUS,2 ;if equal result 0
clrf Digit1 ;make Digit2 = 0
goto Loop ;back to Loop

;****Look Up Table for bit patterns****

Table addwf PC,1
retlw b’00111111' ;Number 0
retlw b’00000110' ;Number 1
retlw b’01011011' ;Number 2
retlw b’01001111' ;Number 3
retlw b’01100110' ;Number 4
retlw b’01101101' ;Number 5
retlw b’01111101' ;Number 6
retlw b’00000111' ;Number 7
retlw b’01111111' ;Number 8
retlw b’01100111' ;Number 9
end






vidusara eke giya counter eka hari kamam ne asm kara ganna widihak......?



[electris1]

;*****Define Registers*****

PC equ 02h
STATUS equ 03h
PORTA equ 05h
PORTB equ 06h
TRISA equ 85h
TRISB equ 86h
CounterL equ 0Dh
CounterH equ 0Eh
Digit1 equ 10h
Digit2 equ 11h

;*****initialization*****

bsf STATUS,5 ;Switch to Bank 1
movlw b’00111001'
movwf TRISA ;RA0 I/P RA1,2 O/P
clrf TRISB ;PORT B output
bcf STATUS,5 ;Switch to Bank 0
clrf Digit1 ;initilize to zero
clrf Digit2 ;initilize to zero
;**display the first digit**
Loop bcf PORTA,2 ;disable digit2
movf Digit1,0 ;get digit1 value
call Table ;Look Up Table
movwf PORTB ;Writ the number
bsf PORTA,1 ;enable digit1

;**small delay to display digit1**

Delay1 decfsz CounterL,1
goto Delay1

;**display the second digit**

bcf PORTA,1 ;disable digit1
movf Digit2,0 ;get digit2 value
call Table ;Look Up Table
movwf PORTB ;Writ the number
bsf PORTA,2 ;enable digit2

;**small delay to display digit2**

Delay2 decfsz CounterL,1
goto Delay2
btfss PORTA,0 ;Button pressed?
goto Countup ;If yes Count up
goto Loop ;else back to Loop

;**Update Digit1 and Digit2**

Countup incf Digit1,1 ;increase Digit1
movlw D’10' ;load w with ten
xorwf Digit1,0 ;compare with 10
btfss STATUS,2 ;if equal result 0
goto Loop ;else back to Loop
clrf Digit1 ;make Digit1 = 0
incf Digit2,1 ;increase Digit1
movlw D’10' ;load w with ten
xorwf Digit2,0 ;compare with 10
btfsc STATUS,2 ;if equal result 0
clrf Digit1 ;make Digit2 = 0
goto Loop ;back to Loop

;****Look Up Table for bit patterns****

Table addwf PC,1
retlw b’00111111' ;Number 0
retlw b’00000110' ;Number 1
retlw b’01011011' ;Number 2
retlw b’01001111' ;Number 3
retlw b’01100110' ;Number 4
retlw b’01101101' ;Number 5
retlw b’01111101' ;Number 6
retlw b’00000111' ;Number 7
retlw b’01111111' ;Number 8
retlw b’01100111' ;Number 9
end






vidusara eke giya counter eka hari kamam ne asm kara ganna widihak......?

ithin oya tiyenne. oka tamai asm file eka



[xshax]

eke mokak hari aulak wage bn.mplabide eke quick build dnnahama errors godak pennanewane........



[electris1]

eke mokak hari aulak wage bn.mplabide eke quick build dnnahama errors godak pennanewane........

ok.mama menna hex file eka damma.oya FUSE set kerala program kera balanna harida kiyala.

** mama oya dapu asm file ekamai oya compile kerala tiyenne.wada keranawada nadda kiyala mama danne naha.hari nam kiyanna.waradi nam eth kiyanna mokada kiyala?niwadu welawaka hadala denna balannam.
