MSI P6n SLI - FI
Its another show off
Guys I bought a MSI p6n Sli fi Motherboard - Although the model isnt new, I love some features it has got- sli, eventhough i cannot afford 2 vgas
Specs:
• 11.96 in. (L) x 9.61 in. (W); ATX
• 4 DIMMs w/ DDR2 800+ up to 8GB
• 2PCI-E 16X (operate at dual 8X when SLI enabled); 1 PCI-E X1; 3 PCI; 8 USB
• HD 7.1 CH Onboard Audio
• Gb LAN; IEEE 1394, RAID (0, 1, 0+1 & 5); SATAII; ATA133
• Live Update; Dual Corecell; MSI Dual CoreCenter; DOT
CPU
• Supports Socket 775 for Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
• Supports FSB 533/800/1066/1333* MHz (FSB 1333 requires FSB 1333 CPU and manual FSB adjustment in the BIOS)
• Supoprts Intel 05B/05A and 04B/04A processors
• Supoprts EIST techonology
• Supports Intel Hyper-Threading (HT) Technology
• Supports Intel Dual Core Technology to 1066MHz and up
Chipset
NVIDIA® nForce 650i SLI (C55) Chipset
• Supports FSB 533MHz, 800MHz, 1066MHz & 1333MHz* (FSB 1333 requires FSB 1333 CPU and manual FSB adjustment in the BIOS)
• Support Dual channel DDR2 533/667/800 memory interface up to 8GB
• Support Dual PCI Express 16X interface with either 1x16 or 2x8 operation.
NVIDIA® nForce 430i (MCP55) Chipset
• Integrated Hi-Speed USB 2.0 controller, 480Mb/sec, 8 ports
• 4 Serial ATAII ports w/ transfer rate up to 3Gb/s and support RAID (0,1, 0+1 & 5)
• 2 channel Ultra ATA 133 bus Master IDE controller up to 4 IDE drives
• PCI Master v 2.3, I/O ACPI 2.0 Compliant
FSB
• Support FSB 533 MHz, 800MHz, 1066MHz & 1333MHz* (FSB 1333 requires FSB 1333 CPU and manual FSB adjustment in the BIOS)
Main Memory
• Supports dual channel DDR2 533/667/800, using four 240-pin DDR2 DIMMs
• Supports the memory size up to 8GB
• Supports 1.8v DDR2 SDRAM DIMM
Slots
• Two PCI Express X16 slots (supports PCI Express BUs specification v1.0a compliant) (The 2nd PCI Express X16 slot will operate at X8 mode when SLI Technology has been enabled)
• One PCI Express X1 slot
• Three 32-bit Master PCI Bus slots
• Support 3.3V/5V PCI bus interface
On-Board IDE / SATA
• Two IDE controllers on the NVIDIA nForce 430i chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes
- Can connect up to 4 IDE devices
• NV RAID supports 4 SATA II ports (SATA1-4). Transfer rate is up to 300MB/s
• NV RAID
- Supports up to 4 SATA
- RAID 0 or 1, 0+1, 5, JBOD is supported
- RAID function work w/ SATAII H/D
Audio
Realtek ALC888 HD Audio
• Flexible 8-channel audio with jack sensing
• Compliant with Azalia 1.0 spec.
LAN
• Supports 10/100/1000 Fast Ethernet by Realtek® RTL8211BL
IEEE 1394
VIA 6308P chipset
• Supports up to 2 x 1394 ports
• Transfer rate is up to 400Mbps
BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
• Supports boot from LAN, USB Device 1.1 & 2.0 and SATA HDD
On-Board Peripherals
• 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
• 1 Serial port (COM 1, supported by pin-out)
• 1 parallel port supports SPP/EPP/ECP mode
• 1 audio jack (5-in-1), coaxial/optical SPDIF out
• 8 USB 2.0 ports (Rear x 4 / Front x 4)
• 1 RJ45 LAN jack
• 1 D-Bracket 2 pinheader
• 2 IEEE 1394a connectors (Rear x 1 / Front x 1)
• 1 CD-in pinheader
Dimensions
11.96 in. (L) x 9.61 in. (W) ATX Form Factor
Mounting
9 mounting holes

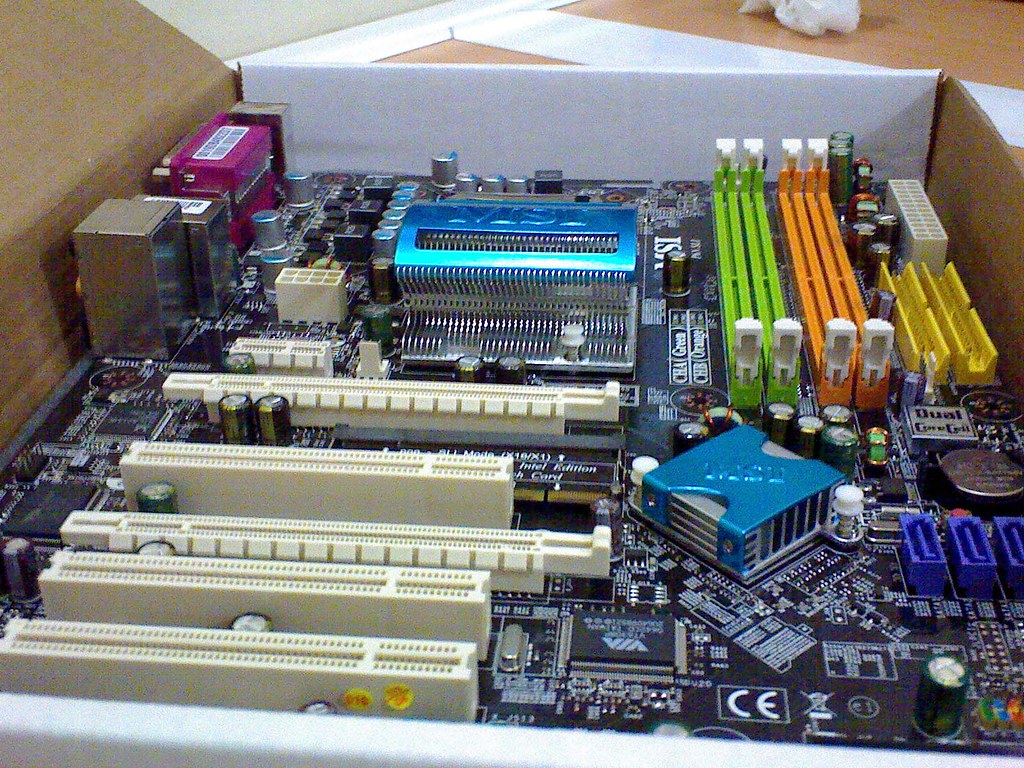

Pics taken by me
sorry guys the quality may be not good that much. it was taken by a 2mp phone n agian i reduced the quality to jpg 6.

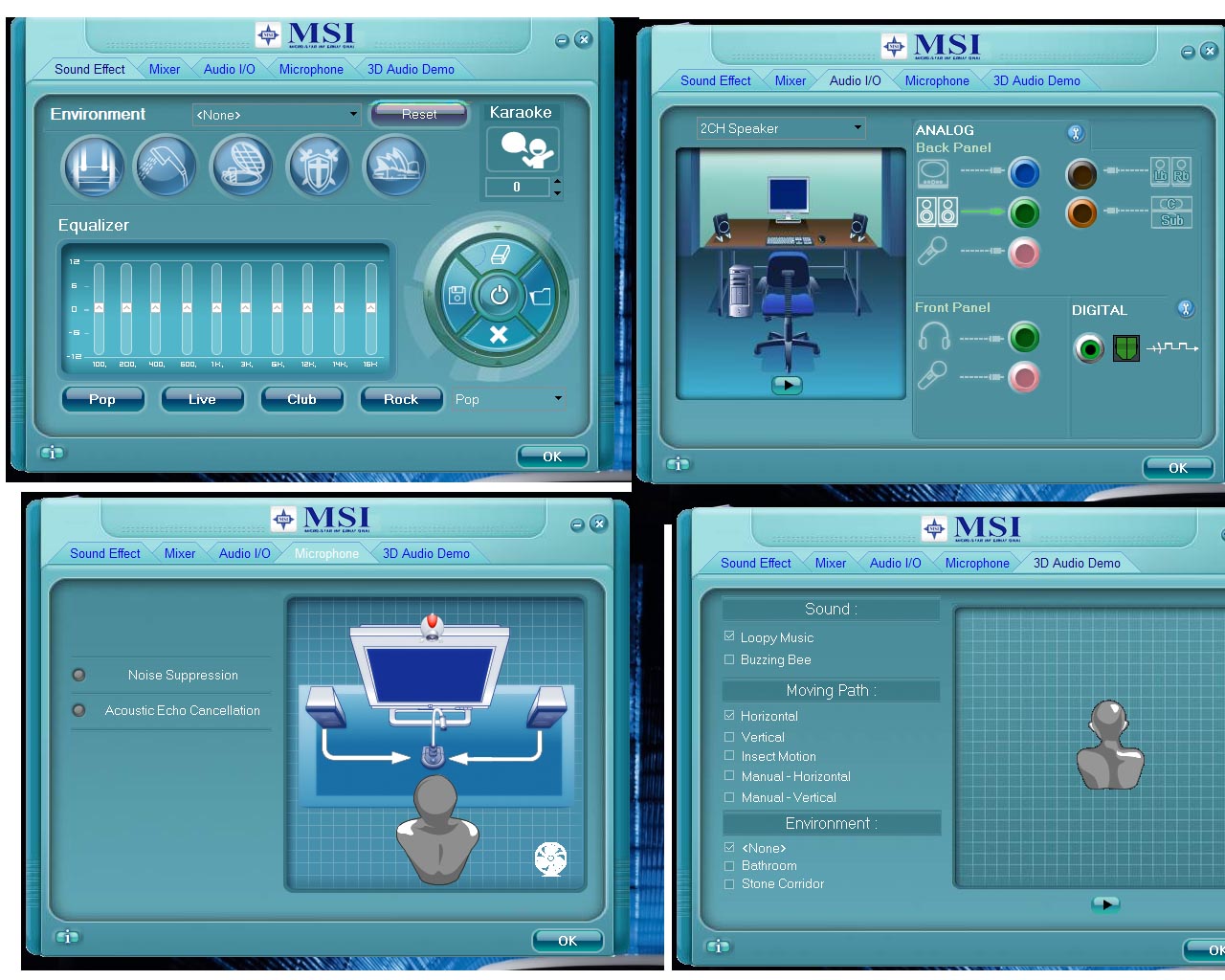

MSI sound
hw monitor
