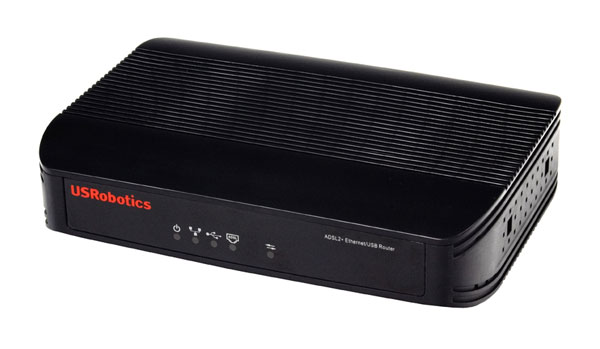

[FONT="]ADSL[/FONT][FONT="] USR Model 9112
Supports ADSL2/ADSL2+ S=1/2 for up to 12 Mbps
Supports full-rate G.DMT (ITU-T G.992.1) and T1.412 Issue 2
ADSL: up to 8 Mbps downstream and up to 1 Mbps upstream†
Supports G.lite (ITU-T G.992.2) ADSL: up to 1.5 Mbps downstream and
up to 512 Kbps upstream†
Supports DSL handshaking (ITU-T G.994.1)
RFC 2516 PPP over Ethernet (Client)
RFC 2364 PPP over ATM
RFC 2684 (formerly 1483) Multi-protocol over ATM (Bridged and Routed)
Annex A
ATM Forum UNI 3.0, 3.1
ITU-T Q.2931, Q.2971 signaling, ITU-T I.363.5 ATM AAL5
ITU-T I.432 ATM cell pacing & HEC generation & reception
ITU-T I.361 ATM cell format
Service Classes for Traffic Shaping: CBR, UBR
Virtual Circuits 4 PVC
Encapsulation LLC/SNAP & VC Mux
Networking
Auto MDI/MDIX support on LAN port
Static and dynamic IP addressing
Universal Plug and Play (UPnP)
Network Address Translation (NAT), Dynamic NAT
DHCP server (LAN) and client (WAN)
PPPoE Client Support
Supports up to 253 clients (with additional Ethernet hubs or switches)
Virtual Server, ALG support
Security
Integrated firewall protection for security
VPN pass-through support for PPTP, IPSec, and L2TP
DMZ support
Access Control List (Time of Day & IP Address)
URL Blocking
Application Mapping
Virtual Server
Denial of Service support
Email notification of intruder
Physical
Visual diagnostic LEDs: Power, ADSL, Internet, USB & LAN
One RJ-45, 10/100 Mbps Ethernet LAN port
One RJ-11, ADSL WAN port
One USB 1.1 Port
Environmental
Operating: -10~50º C
Operating/Non-operating Humidity: 10%~95%/95%
non-condensing
Dimensions
6.13 x 5 x 1.12 inches (15.6 x 12.7 x 2.84 cm)
Regulatory
CE Approved
Language Support
Retail box: English, Turkish, Arabic, Russian, Italian
Installation guide: English, Turkish, Italian
CD ROM User Guide: English, Arabic, Turkish, Italian, Russian
Package Contents
ADSL2+ Router
Ethernet cable
USB Cable
RJ-11 Cable
Micro-filter with PSTN/DSL RJ-11
Power adapter
Quick Installation Guide
Installation CD-ROM with User Manual
Minimum System Requirements
Ethernet - Connect any device that supports 10/100 Mbps Ethernet and RJ-45 connector
USB - USB 1.1 or 2.0 Port, Supports Windows 2000/XP Installation – Requires HTML 4.01 compliant browser
I bought it last year Augest(2008).It has 2 year warranty.I'm selling it for 1500/=. [/FONT]
